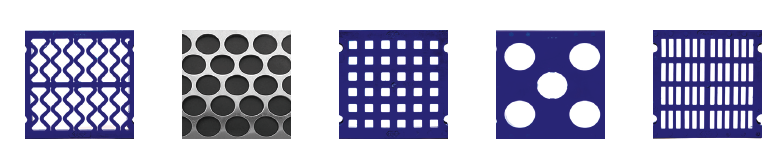

Screening Media:
Wide range for various applications
Poly-Wedge Wire Panels
GKD’s polywedge panels (also known as polywedge screen panels or polyurethane wedge wire) have been designed to offer the high open area drainage benefits of polyurethane and the abrasive and corrosion resistance benefits of wedge wire. Used predominantly in coal mines, these polyurethaneembedded wedge wire inserts are recommended for harsh and abrasive applications, such as sizing, drain and rinse, and dewatering.
We offer polywedge panels with aperture sizes ranging from 0.15 mm to 10 mm, and material grades 304 SS / 430 SS / 316 SS and 3CR12.
Our product portfolio
- Slotted Aperture Panels
- Perforated Plate Media
- Square Aperture Panels
- Flexi Aperture Panels
- Non-Blinding Specialised Material
- Heat Resistant Specialised Material
- Anti-Bac Specialsed Material
- Poly-Wedge Wire Media
- Woven Wire Media
- Wire Mesh Media
- Punch Plate Media
- Polyurethane & Rubber Open Area
- Poly-Wedge Open Area
- Woven Wire Open Area
Aperture Sizes Ranges: 2.0mm to 85mm
Materials:
- PolyTuff™
- PolyFlex™
- Standard Polyurethane
- Rubber
- Heat ResitantPU
- Anti-Bac PU
Panel Sizes: 305mm x 305mm
Thickness (mm): 31, 35, 40, 50, 55
Recommended Applications:
- Sizing
- De-sliming
- Drain & Rinse
- Dewatering, Scalping
Features and Benefits:
- Higher open area than square of same opening
- The flexible nature of the design makes it non-blinding
- Can be used successfully from small apertures as small as 2 to 100mm
Aperture Sizes Ranges: 10mm to 80mm
Materials:
- PolyTuff™
- PolyFlex™
- Standard Polyurethane
- Rubber
- Heat ResitantPU
- Anti-Bac PU
Panel Sizes: 305mm x 305mm
Thickness (mm): 31, 35, 40, 50, 55
Recommended Applications:
- Sizing
- Scalping
Features and Benefits:
Used where elongated particles are not desired
Aperture Sizes Ranges: 0.3 mm to 120 mm
Materials:
- PolyTuffTM
- PolyFlexTM
- Standard Polyurethane
- Rubber
- Heat ResitantPU
- Anti-Bac PU
Panel Sizes: 305 mm x 305 mm
Thickness (mm): 31, 35, 40, 50, 55
Recommended Applications:
- Sizing
- De-sliming
- Drain & Rinse
- Dewatering
- Scalping
Features and Benefits:
- Higher open area than square of same opening
- Less susceptible to pegging and blinding
- Increases screening capacity and efficiency
Aperture Sizes Ranges: 0.63mm to 100mm
Materials:
- PolyTuffTM
- PolyFlexTM
- Standard Polyurethane
- Rubber
- Heat ResitantPU
- Anti-Bac PU
Panel Sizes: 305mm x 305mm
Thickness (mm): 31, 35, 40, 50, 55
Recommended Applications:
- Sizing
- De-sliming
- Scalping
Features and Benefits:
- Higher open area than square of same opening
- Provides more accurate cut point
- Ideal for applications where elongated particles are not desired
Aperture Sizes Ranges: 2mm to 70mm
Materials:
- 304 SS
- 430 SS
- 403 SS
- 3CR12
Panel Sizes: 305mm x 305mm or Costum Sizes
Plate Thickness (mm): 1-12
Recommended Applications:
- Sizing
- Scalping
Features and Benefits:
- Offers high mechanical strength to support high density
ores/feeds - Ideal also for high temperature applications
Aperture Sizes Ranges: 2mm to 120mm
Materials:
- Mild Steel
- 304 SS
- 430 SS
- 403 SS
- 3CR12
- VR400
Panel Sizes: 305mm x 305mm or Costum Sizes
Plate Thickness (mm): 3-12
Recommended Applications:
- Sizing
- Scalping
Features and Benefits:
- Offers high mechanical strength to support high density
ores/feeds - Ideal also for high temperature applications
Aperture Sizes Ranges: 0.3mm to 120mm
Materials:
- Anti-Bac PU
Panel Sizes: 305mm x 305mm
Thickness (mm): 31, 35, 40, 50, 55
Recommended Applications:
- Sizing
- De-sliming
- Drain & Rinse
- Dewatering
- Scalping
Features and Benefits:
- Used in applications where bacteria attacks standard
polyurethane
Aperture Sizes Ranges: 0.3mm to 120mm
Materials:
- Heat ResitantPU
Panel Sizes: 305mm x 305mm
Thickness (mm): 31, 35, 40, 50, 55
Recommended Applications:
- Sizing
- De-sliming
- Drain & Rinse
- Dewatering
- Scalping
Features and Benefits:
- Used in applications where the feed is higher than ambient
temperature - Can be used is wet applications up to 120 degrees celcius
Aperture Sizes Ranges: 0.3mm to 120mm
Materials:
- PolyTuffTM
- PolyFlexTM
- Rubber
Panel Sizes: 305mm x 305mm
Thickness (mm): 31, 35, 40, 50, 55
Shore Hardness (A): 40, 60, 70, 72
Recommended Applications:
- Sizing
- De-sliming
- Drain & Rinse
- Dewatering
- Scalping
Features and Benefits:
- Materials with lower shore hardness than standard Polyurethane
exhibit lively characteristics when installed on a vibrating screen
This liveliness virtually eliminates the likelihood of blinding - Ideal for sizing applications
- Has been used successfully to lower medium consumption
(FeSi and Magnetite) - Has been used successfully in dewatering applications
Aperture Sizes Ranges: 0.3mm to 10mm
Materials:
- 304 SS
- 430 SS
- 3CR12
Panel Sizes: 305mm x 305mm
Thickness (mm): 31, 35, 40
Recommended Applications:
- Sizing
- De-sliming
- Drain & Rinse
- Dewatering
- Scalping
Features and Benefits:
- Provides higher open area than square and slotted apertures
- Recommended for drain and rinse and dewatering applications
Aperture Sizes Ranges: 6.0micron to 3mm
Materials:
- 304 SS
Wire Sizes: 0.26mm to 1.2 mm
Panel Sizes: 305mm x 305mm
Thickness (mm): 31
Recommended Applications:
- Sizing
- Dewatering
Features and Benefits:
- High open area
- Used in low bed depth or low material density applications
Aperture Sizes Ranges: 3mm to 110mm
Materials:
- 304 SS
- 316 SS
- High Carbon
- Galvanised
- Mild Steel
Panel Sizes: 305mm x 305mm or Custom Sizes
Wire Diamter:
- 1.2 – 8.0
- 1.2 – 12.5
- 1.2 – 12.5
- 1.2 – 12.5
- 1.2 – 12.5
Recommended Applications:
- Sizing
- Scalping
Features and Benefits:
- Provides higher open area than polyurethane and rubber media
- Can be supplied in custom sizes with overhooks or in a modularised 305 x 305 x 31 panel using standard Pins and Sleeves
